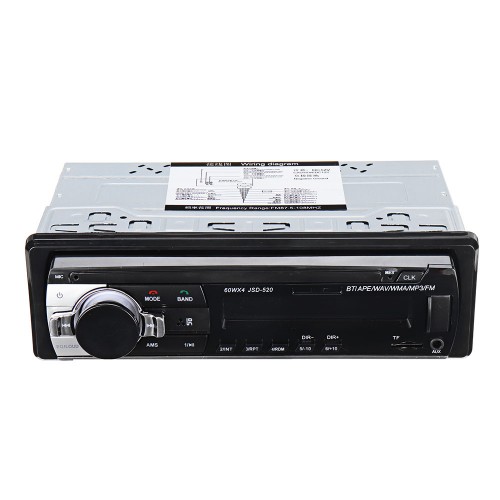

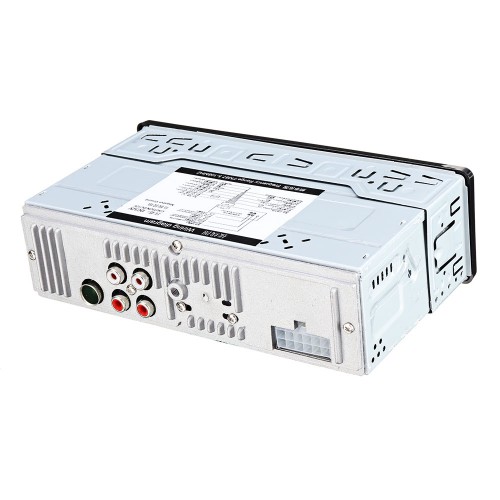

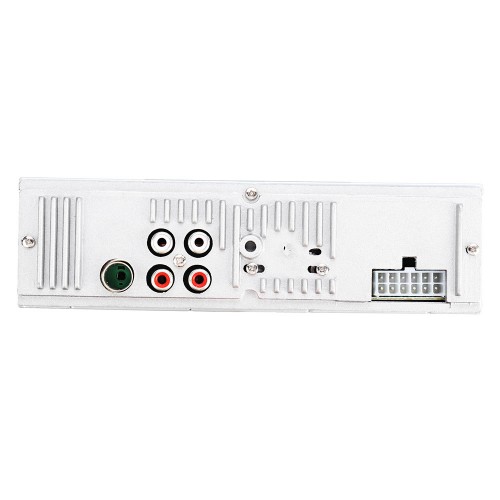

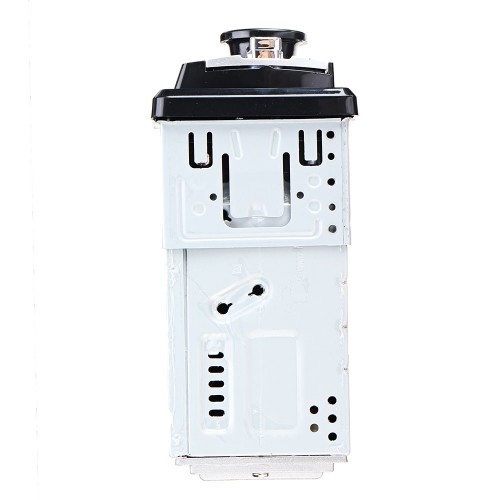

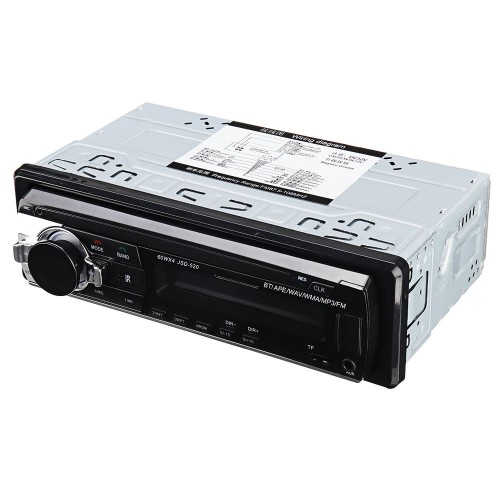

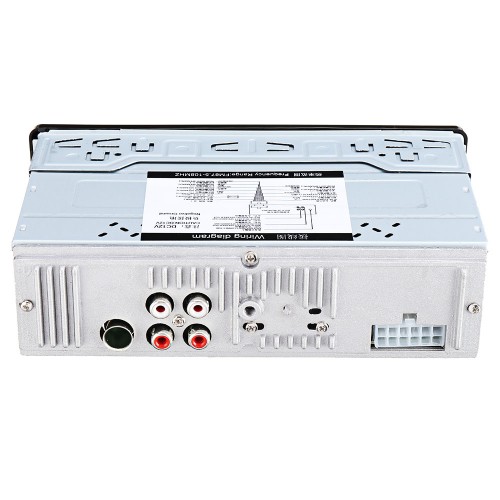

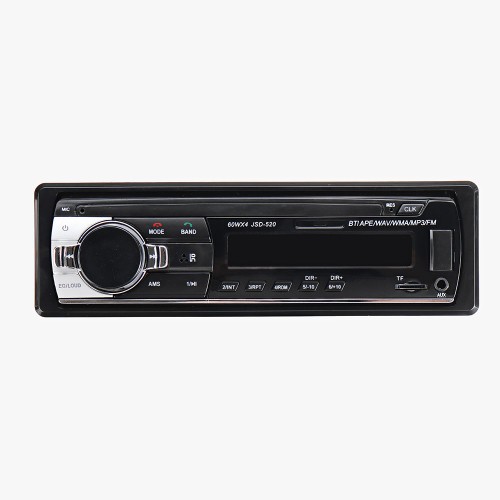

12V Multi function Car Stereo Radio MP3 Player Auto Audio bluetooth AUX SD USB FM

Note:The voltage of this product is 12V and it is forbidden to connect it to 24V.

Feature:

–Fine workmanship and good performance.

–Easy use.

–Long service life.

Specification:

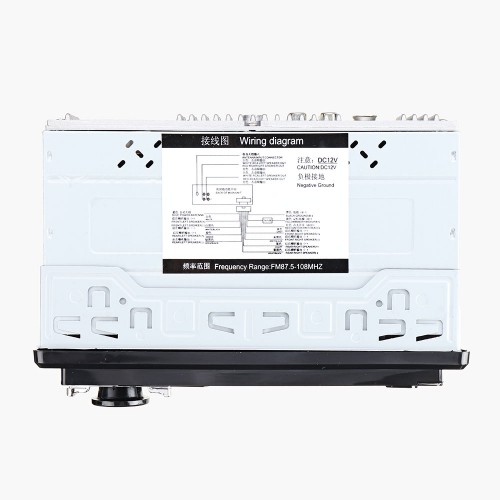

Wiring Diagram:

1.Yellow (memory line): connected to the positive terminal of the constant voltage, (provided Machine memory line with)

2.Red (power cord): connected to the power switch,(car ignition Device control switch)

Speaker wire connection:

The unit can be used 4-8 European load speaker,speaker cable please Disconnect the power to prevent short circuit, please do not connect with the ground wire when wiring,Do not connect the speaker cable to each other, otherwise it will damage the machine.

Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

3.Although instruction is included.Professional Installation Is Highly Recommended!

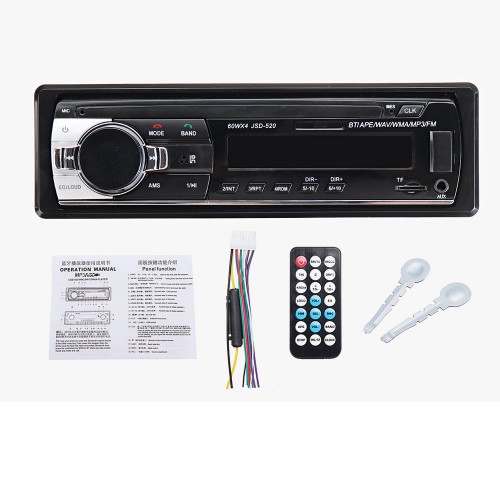

Package included:
